Features

• Pure Sine Wave Inverter
• Configurable color with the built-in RGB LED bar
• Built-in Wi-Fi for mobile monitoring (APP required)
• Supports USB on-the-go function
• Built-in anti-dusk kit
• Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
• Configurable input voltage ranges for home appliances and personal computers via LCD control panel
• Configurable AC / PV output usage timer and prioritization
• Configurable AC / Solar charger priority via LCD control panel
• Configurable battery charging current based on applications via LCD control panel
• Compatible with utility mains or generator power
• Auto restart while AC is recovering
• Overload / over temperature / short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function

Specifications

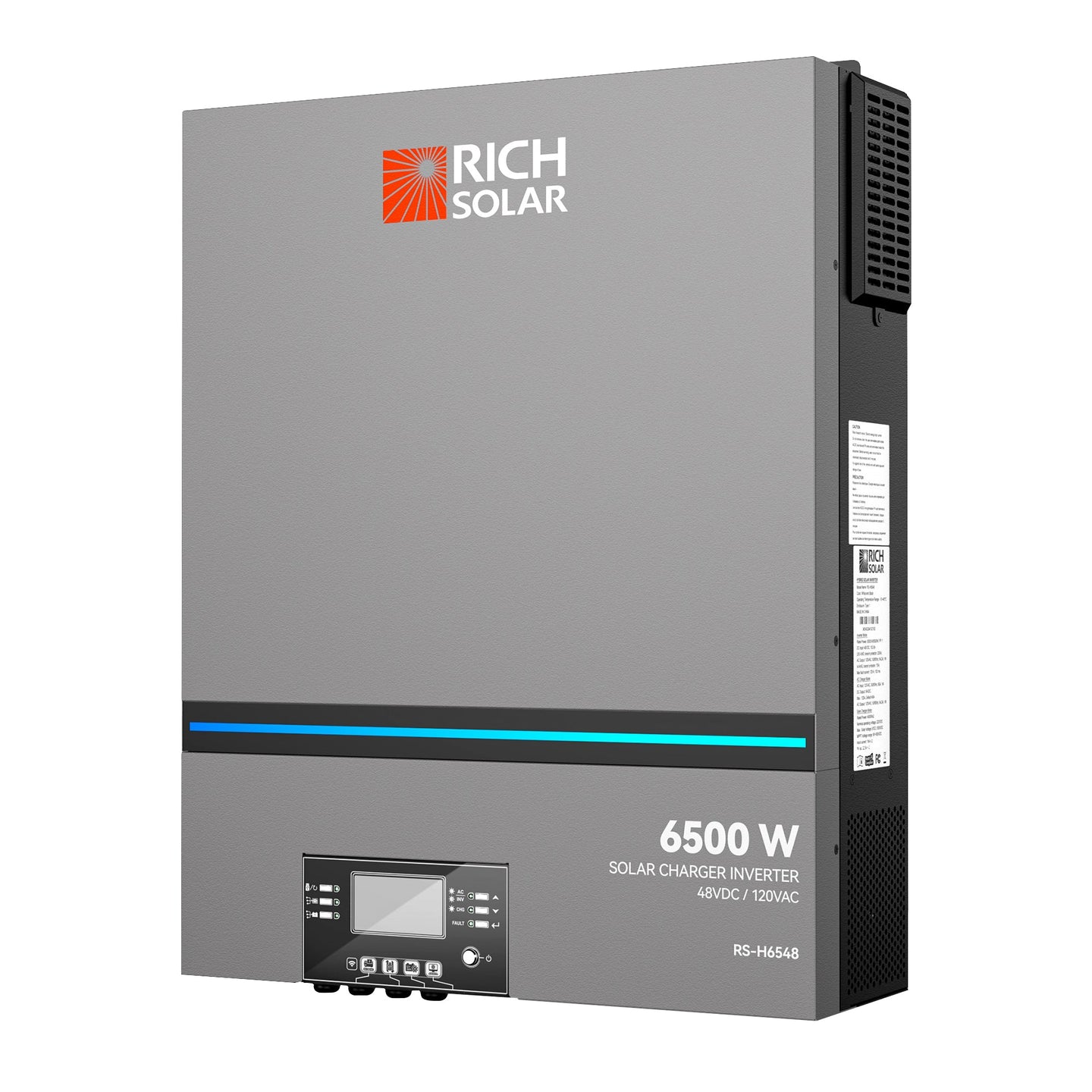

• • Model: RS-H6548V5
  • Rated Output Power: 6500W
  • Parallel Capability: Yes, 6 units

• Input

  • Input Voltage: 120 VAC
  • Efficiency: >95% (Rated R load, battery fully charged)
  • Frequency Range: 50Hz / 60Hz (Auto detection)

• Output

  • Rated Output Power: 6500W
  • Output Voltage Waveform: Pure Sine Wave
  • Output Voltage Regulation: 120 VAC±5%
  • Peak Efficiency: 91%
  • Surge Capacity: 2* rated power for 5 seconds
  • Nominal DC Input Voltage: 48 VDC
  • Cold Start Voltage: 46.0 VDC

• Battery

  • Battery Voltage: 48 VDC
  • Float Charging Voltage: 54 VDC
  • Overcharge Protection: 66 VDC

• Operating Environment

  • Operating Temperature Range: 14°F to 104°F
  • Storage temperature: 5°F~ 140°F
  • Humidity: 5% to 95% Relative Humidity (Non-condensing)

• Physical

  • Dimensions: 5.8 x 17.0 x 22.66 (24.43) in (with extension box)
  • Net Weight: 18.4kg / 41lb
